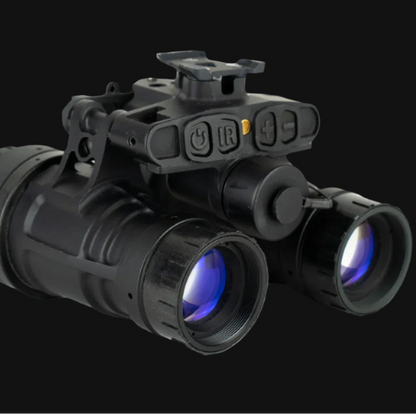

Manticore

Physical Specs

Housing Weight: 4.48 oz (127 g).

Device Weight (Standard): 19.93 oz (565 g) with Mil-spec optics and battery.

Device Weight (Lightweight): 15.49 oz (439 g) with RPO 3.0 optics and battery.

Housing Material: High-strength hybrid fiber-reinforced injection-molded polymer.

Structural Design: Optimized single-piece pod geometry for maximum durability and precision.

Impact Resistance: Exceeds MIL-STD-810G and NATO 1.5m drop test standards.

Environmental Rating: Exceeds IP68+ (submersible to 66ft) and MIL-STD-810H standards.

Tube Compatibility: Compatible with 3-contact pad style 18mm MX-11769 (Manual Gain), MX-11769 with EGAC pigtail removed, or MX-10160 (Auto-Gain only).

Optics Compatibility: Fully compatible with PVS-14 spec eyepieces and objective lenses.

Power Specs

Onboard Power: Single CR123A battery (standard) or optional AA/AAA caps.

Operation Time: 26+ hours of continuous runtime on a single CR123A at room temperature.

External Power Port: Integrated LEMO 00B 2-pin port for connection to remote battery packs (extending runtime to 100+ hours).

Digital Manual Gain: Tactile digital push buttons on the front of the housing for precise brightness adjustment.

Automatic Features: Independent pod stow shutoff automatically powers off each pod when rotated.

Integrated Indicators: Features both an "IR-On" indicator and a red glowing "Low Battery" warning ring.

Key Features

Friction Lock IPD: Patented toolless Interpupillary Distance adjustment allows users to set and maintain settings without additional hardware.

User-Adjustable Tension: Tensioner screws allow operators to customize articulation stiffness using a T10 Torx driver.

Low Profile Design: Engineered to make mounting and dismounting vehicles easier while the device is stowed.

Housing Finish: Matte Black (standard); H-Series Cerakote available for Coyote Brown and OD Green.

Warranty: Lifetime "no questions asked" housing warranty from Nocturn Industries.
