LLI MH-1

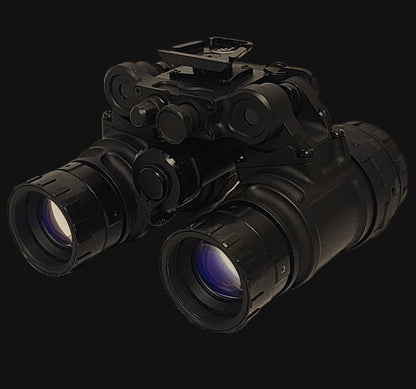

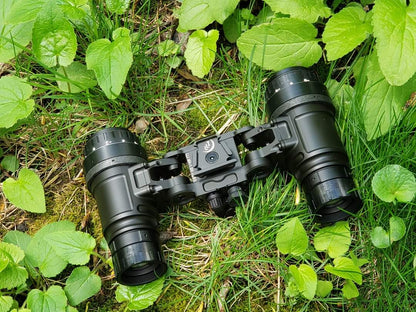

Low Light Innovations (LLI) MH-1 Night Vision Binocular

Physical Specs

Housing Weight: 15.3 oz (433 g) in its lightest configuration

Assembled Weight: Approx. 18.5 oz (525 g) with standard Mil-spec optics and battery

Housing Material: Crafted from aerospace-grade magnesium and titanium alloys for a superior strength-to-weight ratio

Articulation: Features dual articulating pods with independent rotational shutoff when stowed

Interpupillary (IPD) Adjustment: 51mm to 78mm with integrated IPD stops

User-Adjustable Tension: Pod articulation stiffness can be customized by the operator

Environmental Rating: IP68 Qualified; Submersible to 66 ft for 2 hours

Tube Compatibility: Fully compatible with both MX-10160 (Auto-gain) and MX-11769 (Manual gain) format tubes

Optics Compatibility: Fully compatible with all PVS-14 pattern eyepieces and objective lenses

Power Specs

Primary Power Source: Modular onboard power; supports CR123A (Standalone) or Universal Battery Compartment for AA

Operation Time: Approximately 25 to 90 hours depending on battery configuration

External Power Port: Integrated 4-pin Fischer/LEMO 00B port for connection to remote battery packs

Manual Gain Control: Achievement via a direct 4-pin ECAG plug-in without soldering, preserving the intensifier tube's warranty

Onboard IR Illuminator: Features dual-power IR illumination for administrative and close-range tasks

Indicators: Features low battery and IR-on indicators

Key Features

Modular Ecosystem: Designed for maximum flexibility; can be split into two individual monoculars using the Modular Bridge System (MBS)

Future-Proof Design: Modular mounting platforms support both standard Dovetail (at launch) and future Ball-detent interfaces

Manufacturing: Proudly made in the USA using domestic and selected international components

Warranty: Lifetime warranty on the housing from Low Light Innovations
