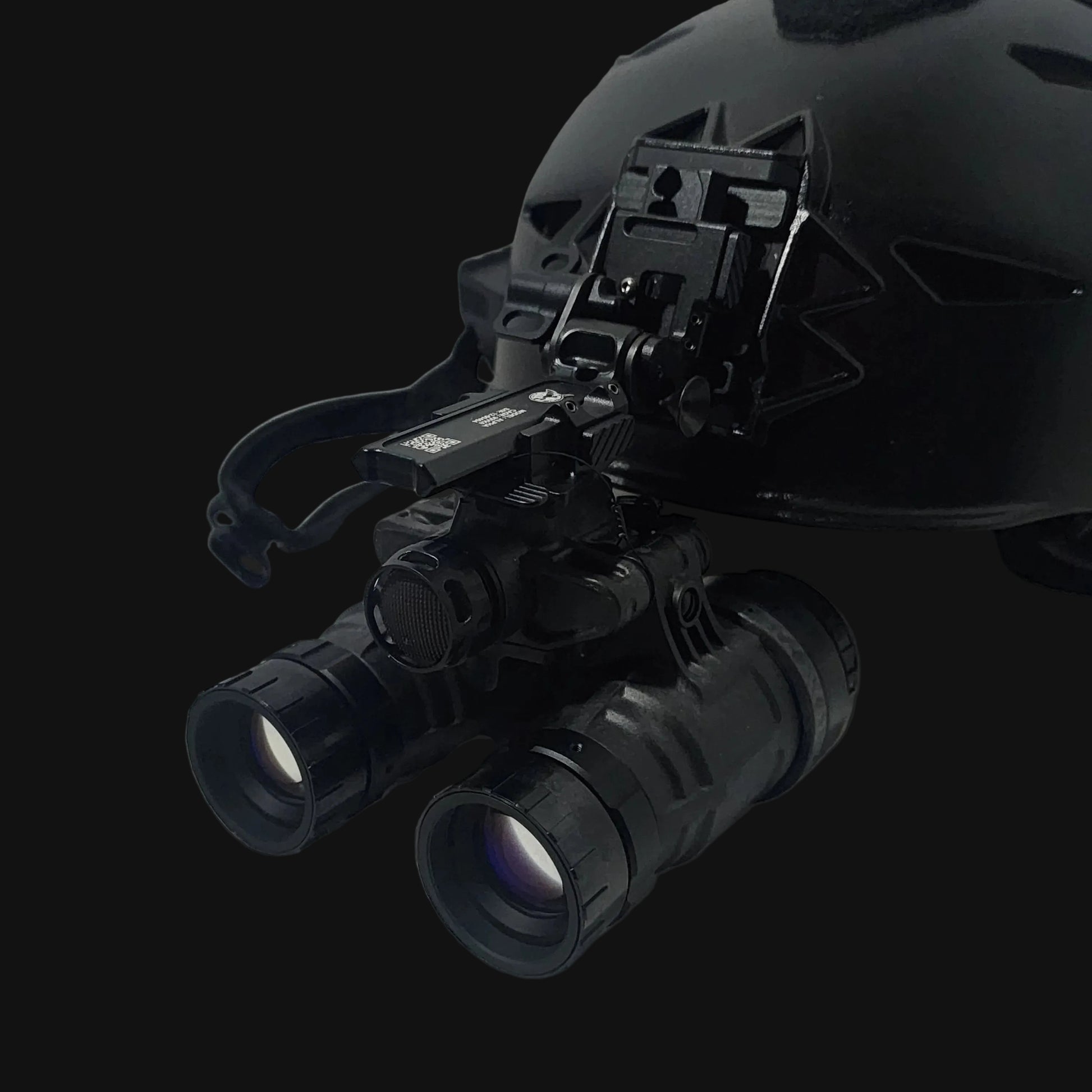

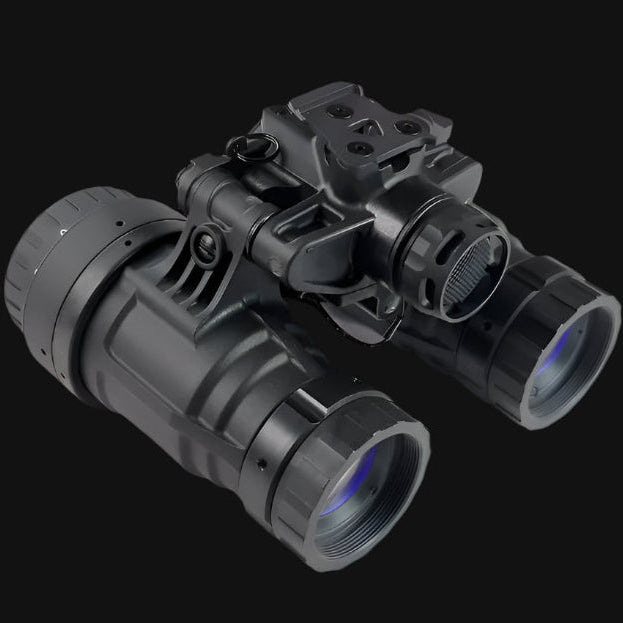

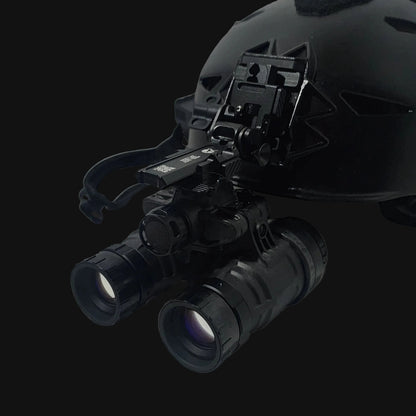

Katana

Physical Specs

Housing Weight: 3.88 oz (110 g)

Device Weight (Standard): 18.91 oz (536 g) with Mil-spec optics and Photonis IITs

Device Weight (Lightweight): 14.89 oz (422 g) with RPO 4.0 optics and Photonis IITs

Housing Material: Cutting-edge carbon fiber reinforced thermoplastic composite

Structural Strength: Injection molded material rivals 6061-T6 aluminum in tensile strength

Environmental Rating: Exceeds IP-68 and MIL-STD-810H standards

Durability: Drop-tested beyond NATO/TOP specifications (6 feet to concrete in 6 orientations on a single device)

Tube Compatibility: 18MM MX-10160 style or MX-11769 style with EGAC pigtail removed

Optics Compatibility: Fully compatible with PVS-14 spec eyepieces and objective lenses

Electronic & Power Specs

Primary Power Source: Single CR123A battery

Operation Time: 26+ hours continuous runtime at room temperature

External Power Port: Integrated LEMO 00B 2-pin port for external battery packs (runtime increases to 100+ hours with optional 4x CR123A pack)

Manual Gain Control: No

Low Battery Indicator: Yes

Key Features

Individual Pod Articulation: Pods automatically power off when rotated into the stowed position

Friction Lock IPD: Patented toolless Interpupillary Adjustment allows users to set and lock eye distance without additional hardware

Low Profile Design: Optimized for easier mounting and dismounting of vehicles while stowed

Non-Passive Optimized: Enables the use of one or both eyes while utilizing weapon-mounted aiming systems

Housing Coating: Matte Black (standard); H-Series Cerakote available for Coyote Brown and OD Green

Warranty: Lifetime repair or replacement warranty on all housing components
