IRAY USA RH 25 V2 Rico Micro Multipurpose Thermal

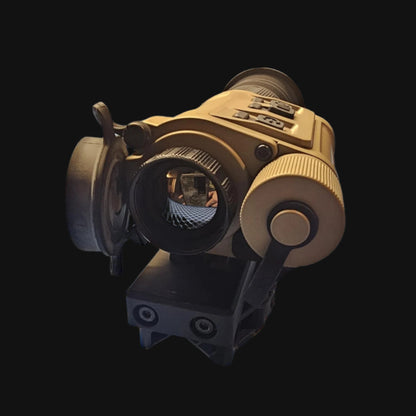

The InfiRay RICO MICRO RH25 V2 is an evolution of the versatile MICRO platform, designed to function as a handheld scanner, helmet-mounted monocular, standalone weapon sight, or thermal clip-on. This second-generation model introduces a machined magnesium alloy housing for weight reduction and an upgraded sensor suite for significantly improved thermal sensitivity.

1. Sensor & Optical Performance

• Sensor Type: InfiRay MICRO II Thermal Imaging core.

• Resolution: 640 x 480 pixels.

• Pixel Size: 12µm.

• Thermal Sensitivity (NETD): Rated at <15mK, offering a substantial improvement over the previous generation for better detail in low-contrast environments.

• Refresh Rate: 60Hz for smooth motion tracking.

• Objective Lens: 25mm f/1.0 Germanium lens with manual focus.

• Field of View: 17.5° (Horizontal) x 13.1° (Vertical).

• Magnification: 1X Optical base magnification with 4X Digital zoom.

• Detection Range: Up to 1375 yards.

2. Advanced Display & Eyepiece

• Display Type: High-resolution AMOLED.

• Resolution: 1440 x 1080 pixels.

• Display Improvements: The V2 display is 80% larger and contains 97% more total pixels than its predecessor.

• Eye Relief: 45mm.

• Diopter Range: Adjustable from -5 to +2.

• Optic Compatibility: The new eyepiece is compatible with daytime optics up to 6x magnification when used in clip-on mode.

3. Physical & Environmental Specs

• Housing: Machined Magnesium Alloy for enhanced durability at a lower weight.

• Weight: 11.3 oz.

• Dimensions: 4.52" (L) x 2.55" (W) x 1.88" (H).

• Ingress Protection: IP67 rated against dust and water immersion.

• Operating Temp: Operates between -4°F and 122°F.

• Recoil Rating: 1000 g/s² (safe for calibers like .300 Win Mag and 7mm Mag).

4. Electronics & Connectivity

• Onboard Recording: Captures both photos and video with integrated audio.

• Internal Storage: 64GB of storage capacity.

• Wireless: Built-in Wi-Fi and Mobile App support.

• Power Source: Runs on a rechargeable/interchangeable 18650 battery cell or USB-C external power.

• Run Time: 6.5+ hours (depending on settings and power source).

• User Interface: Compact 3-button control panel with separate interfaces for clip-on and helmet modes.

5. Integration & Features

• Mounting Options: Includes a MUM rail and Picatinny riser mount; compatible with the iRayUSA PICTAIL (AC52) for expanded mounting flexibility.

• Reticles: Features 7 distinct reticle types.

• Color Palettes: White Hot, Black Hot, Red Hot, and Color modes.

• Non-Uniformity Correction (NUC): Supports Manual, Automatic, and Semi-Automatic correction.

• Warranty: 5-year manufacturer warranty.
