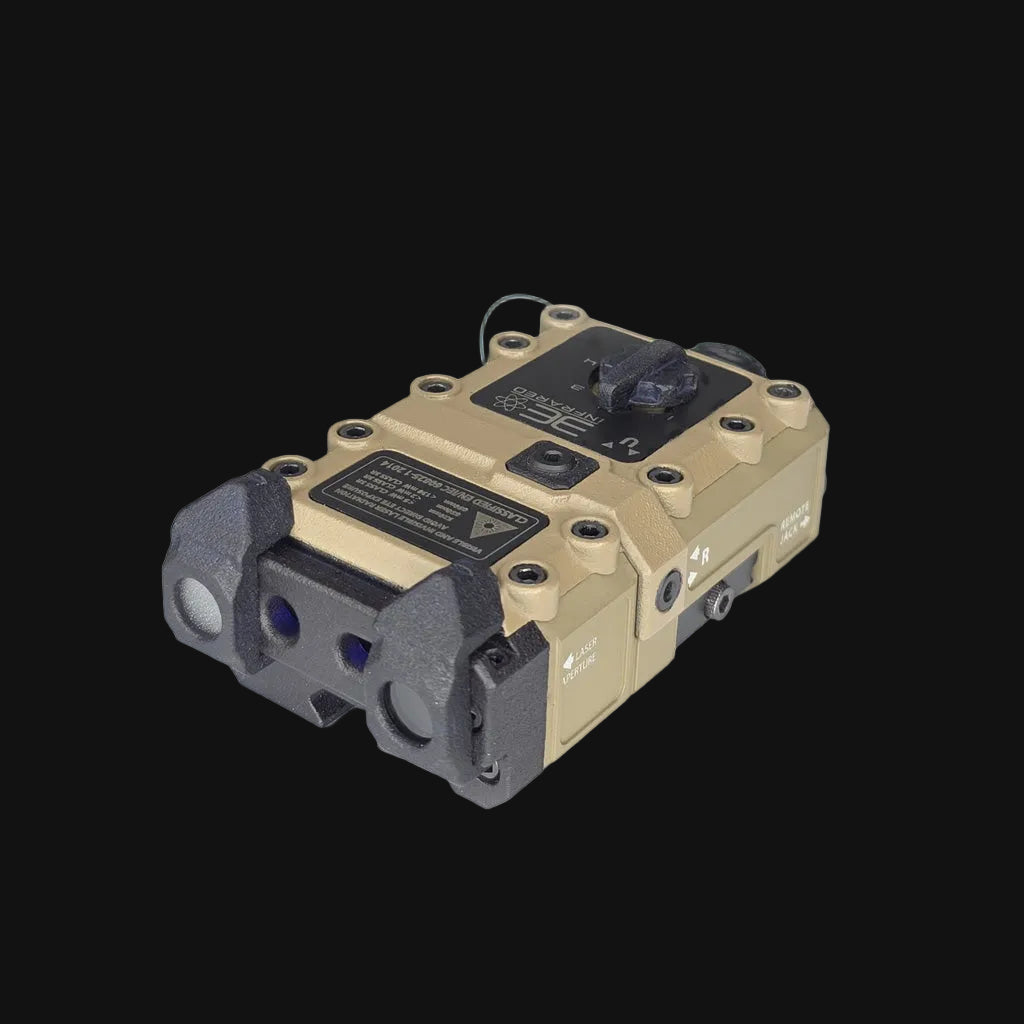

3EIR Sentinel-IRV P

Product Overview

SKU: 300530

Modes: Off, Visible Green Laser Pointer, IR Laser, VCSEL, IR Pointer and VCSEL, VCSEL Only

Visible Green Laser

Output Power: > 5.0 mW Class 3R

Wavelength: 520 nm

Beam Divergence: 0.5 mrad

Range: > 50 m Daylight

Infrared (IR) Laser

Output Power: < 2.5 mW Class 3R

Wavelength: 830 nm

Beam Divergence: 0.5 mrad

Range: > 1000 m

VCSEL Illuminator (Infrared)

Output Power: < 130 mW Class 3R

Wavelength: 850 nm

Beam Divergence: 3 Degree

Range: > 300 m

Physical Specifications

Dimensions: L- 3.2”, W- 2.04”, H- 0.85” (above the rail)

Weight: 5.3 oz (No Battery)

Housing Tensile Strength: 39,300 psi

Battery & Environmental

Battery Type: (1) CR123 +0.56 oz (Recommended: Panasonic or Energizer CR123 Lithium)

Battery Life: > 5 hours

Environmental Rating: IP68 (submersible 1m, 3 min.)

Operating Temp: -10°C to 55°C (14°F to 131°F)
