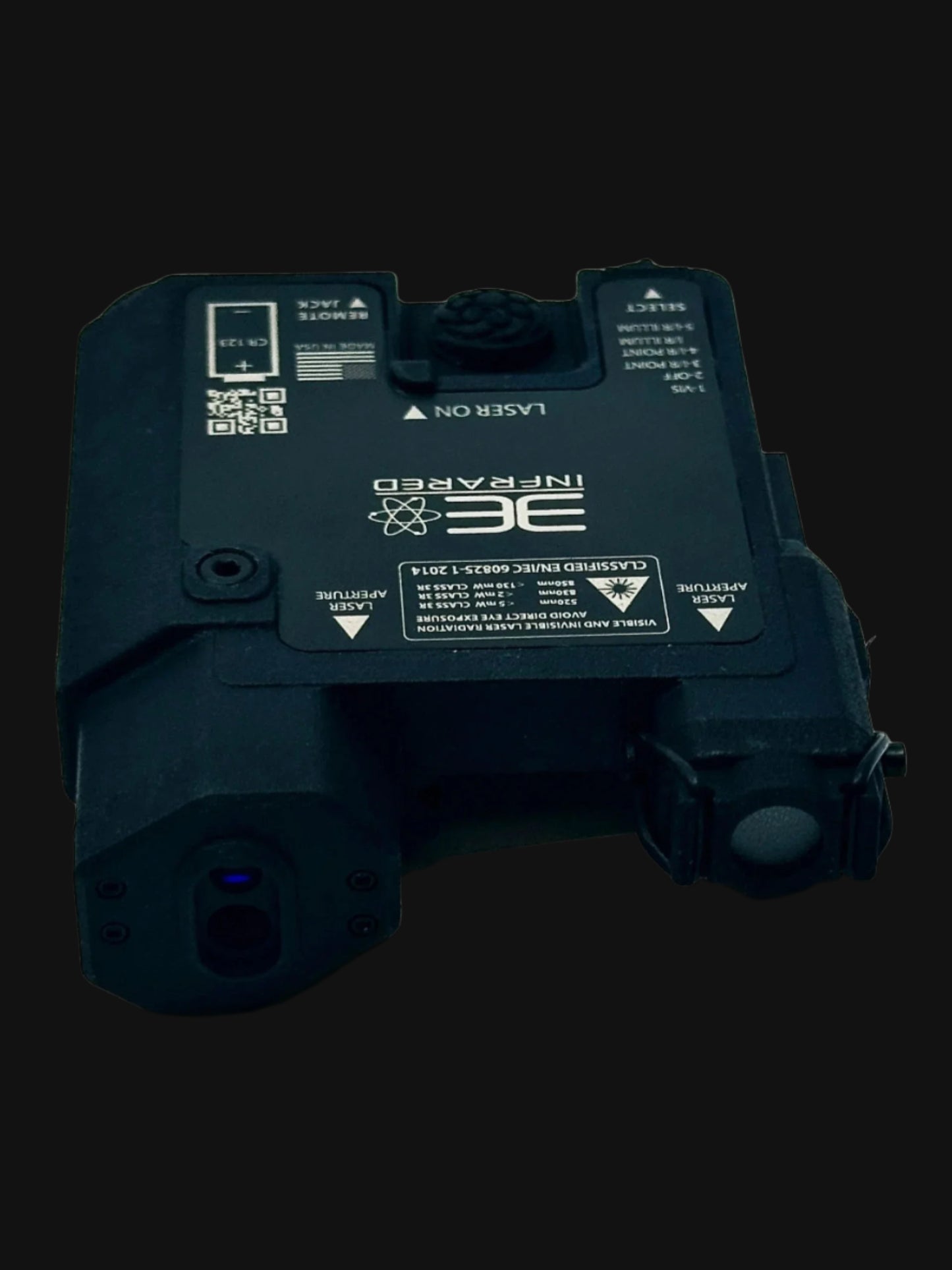

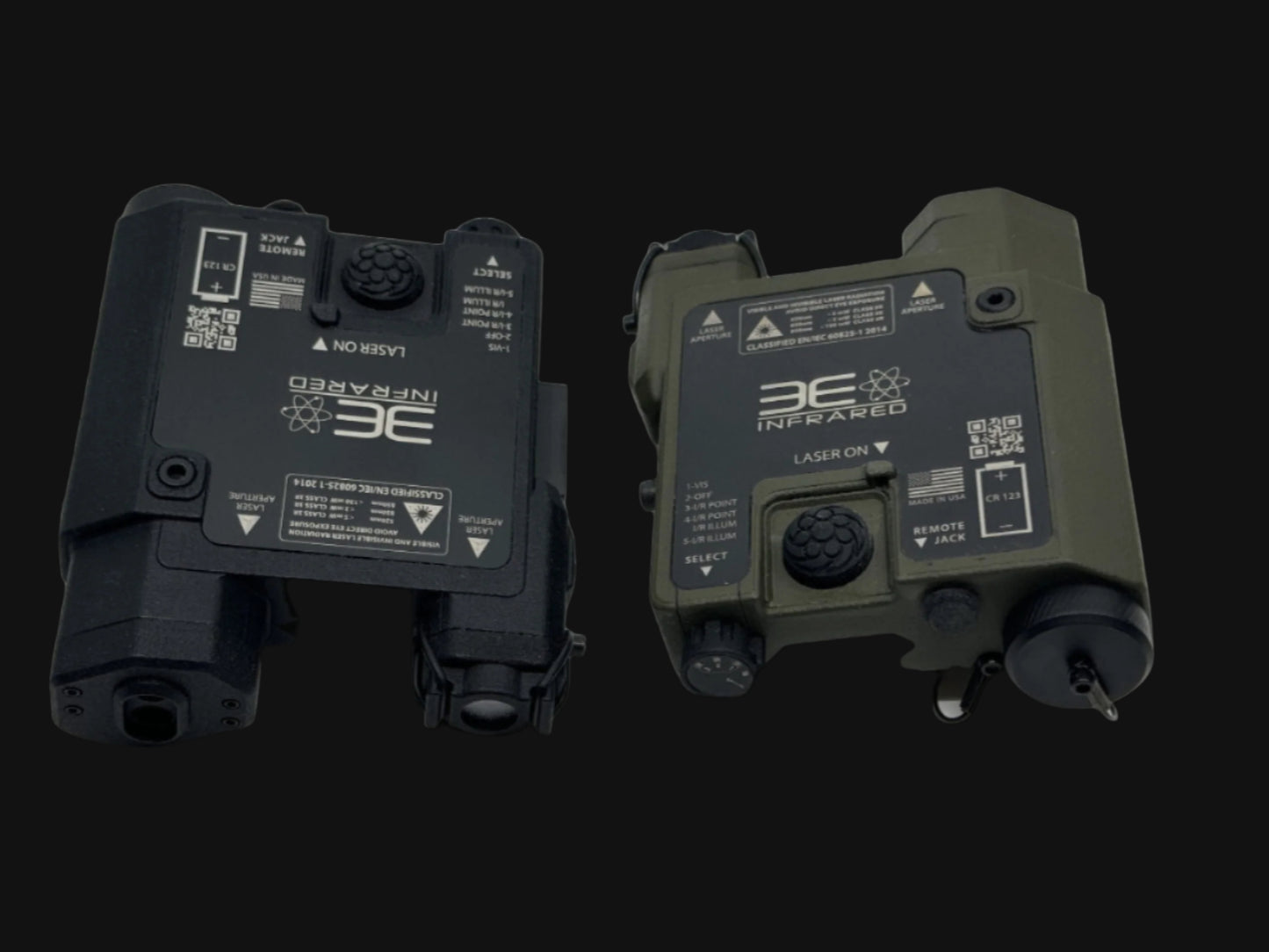

3EIR DIR-V™ (Visible Green & IR Laser Pointer + VCSEL)

Product Overview

Color: Black Housing

SKU: 200100

Design: Co-Witnessed Visible Green laser, Infrared laser, and VCSEL Illuminator.

Physical Specifications

Size / Dimensions: L- 3.8”, W- 2.9”, H- 0.5” (Above the rail)

Weight (No Battery): 6.3 oz

Housing Tensile Strength: 7,549 psi

Mounting: Built with Arisaka Mount and Arisaka waterproof button

Port Type: CRANE port (Parallel to primary activation button)

Laser & Illuminator Performance

Visible Green Laser:

Output Power: < 5.0 mW Class 3R

Wavelength: 520 nm

Beam Divergence: 0.5 mrad

Range: 50m in Daylight

Infrared (IR) Laser:

Output Power: 2.5 mW Class 3R

Wavelength: 830 nm

Beam Divergence: 0.5 mrad

Range: > 1000 m

VCSEL Illuminator (Infrared):

Output Power: 130 mW Class 3R

Wavelength: 850 nm

Beam Divergence: 3 Degree

Range: 300 m

Battery & Environmental

Battery Type: (1) CR123 (+0.56 oz)

Recommended Battery: Panasonic or Energizer CR123 Lithium

Battery Life: 5 hours

Environmental Rating: IP68 (Submersible 1m for 3 min.)

Operating Temperature: -20°C to 60°C (-4°F to 140°F)

Warranty & Support

Electronics Warranty: 2 years

Housing Warranty: Lifetime (covers cracks/water egress)

Origin: Made and technically supported in the USA

What’s In The Box:

3EIR Laser unit

Product Manual

Allen Key

(2) IR Targets
